GENERAL DESCRIPTION

The RS8511, RS8512, RS8514, RS8513(dual version &shutdown) series of CMOS operational amplifiers use auto-zero techniques to simultaneously provide very low offset voltage (40μV max) and near-zero drift over time and temperature. This family of amplifiers has ultralow noise, offset and power.

This miniature, high-precision operational amplifiers offset high input impedance and rail-to-rail input and rail-to-rail output swing. With high gain-bandwidth product of 350KHz and slew rate of 0.17V/μs. Single or dual supplies as low as +2.5V(±1.25V) and up to +5.5V (±2.75V) may be used.

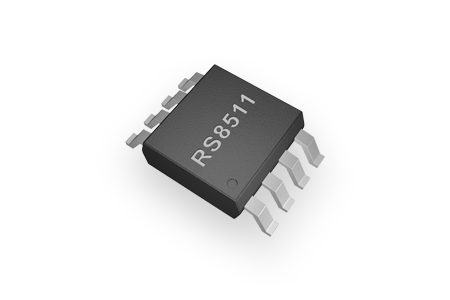

The RS8511/RS8512/RS8514/RS8513(dual version with shutdown) are specified for the extended industrial and automotive temperature range (-40°C to 125°C). The RS8511 single amplifier is available in 5-lead SOT23, 8-lead MSOP8 and 8-lead SOIC packages, The RS8512 dual amplifier is available in 8-lead SOIC, 8-lead TDFN2x2 and 8-lead TSSOP narrow surface mount packages, The RS8513(dual version with shutdown) comes in Micro-SIZE MSOP- 10. The RS8514 quad is available in 14-lead SOIC and 14-lead narrow TSSOP packages.

FEATURES

• Low Offset Voltage: 40uV (Maximum)
• Input Offset Drift: 0.05μV/°C
• High Gain Bandwidth Product: 350KHz
• Rail-to-Rail Input and Output
• High Gain, CMRR, PSRR:130dB
• High Slew Rate: 0.17V/μs
• Low Noise: 1.6uVp-p (0.01~10Hz)
• Low Power Consumption: 60μA /op amp
• Overload Recovery Time:6us
• Low Supply Voltage: +2.5 V to +5.5 V
• No External Capacitors Required
• Extended Temperature: -40°C to +125°C

APPLICATIONS

• Temperature Sensors
• Medical/Industrial Instrumentation
• Pressure Sensors
• Battery-Powered Instrumentation
• Active Filtering
• Weight Scale Sensor
• Strain Gage Amplifiers
• Power Converter/Inverter

PIN CONFIGURATIONS
